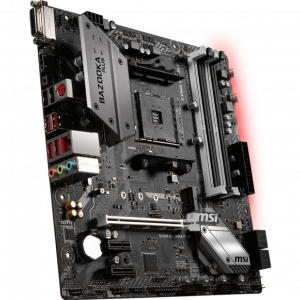

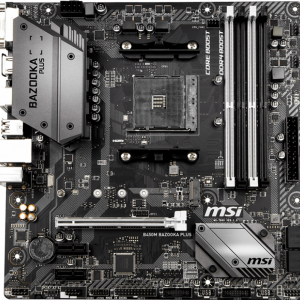

MSI B450M BAZOOKA PLUS

PROCESSOR

Support AMD® Ryzen™ 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics Processors for Socket AM4

CHIPSET

AMD® B450 Chipset

MEMORY

• 4 x DDR4 memory slots, support up to 64GB
• Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
• Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3333 MHz (by A-XMP OC MODE)
• Supports Dual-Channel mode
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory

SLOTS

• 1x PCIe 3.0 x16 slot
  • Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors
  • Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors
• 2x PCIe 2.0 x1 slots

ONBOARD GRAPHICS

• 1x DVI-D port, support a maximum resolution of 1920×1200@60Hz1
• 1x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz1

1. Only support when using AMD® Ryzen™ with Radeon Vega Graphics Processors
2. Maximum shared memory of 2048 MB

STORAGE

AMD® B450 Chipset

• 4 x SATA 6Gb/s ports

AMD® CPU

• 1 x M.2 slot (M2_1, Key M)
  • Supports PCIe 3.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices

RAID

AMD® B450 Chipset

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB

AMD® B450 Chipset

• 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB 3.1 Gen1 connectors)
• 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AUDIO

Realtek® ALC892 Codec

• 7.1-Channel High Definition Audio

LAN

• 1 x Realtek® RTL8111H Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX 12V power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
• 1 x 4-pin CPU fan connector
• 2 x 4-pin system fan connectors
• 2 x 5050 RGB LED strip 12V connectors
• 1 x TPM module connector
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper
• 1 x Serial Port connector
• 1 x Parallel Port connector

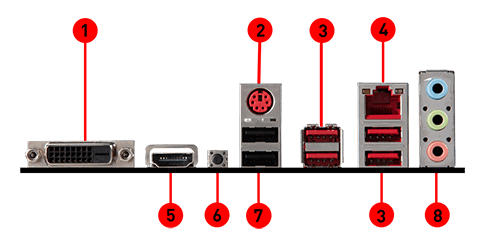

BACK PANEL PORTS

1. DVI-D Port
2. PS/2 Combo Port
3. USB 3.1 Gen1
4. LAN Port
5. HDMI Port
6. BIOS FLASHBACK+ Button
7. USB 2.0 Port
8. HD Audio Connectors

DIMENSIONS

• 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
• M-ATX Form Factor

MOUNTING

8 mounting holes

OPERATING SYSTEM

• Support for Windows® 10 64-bit
• Support for Windows® 7 64-bit

* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

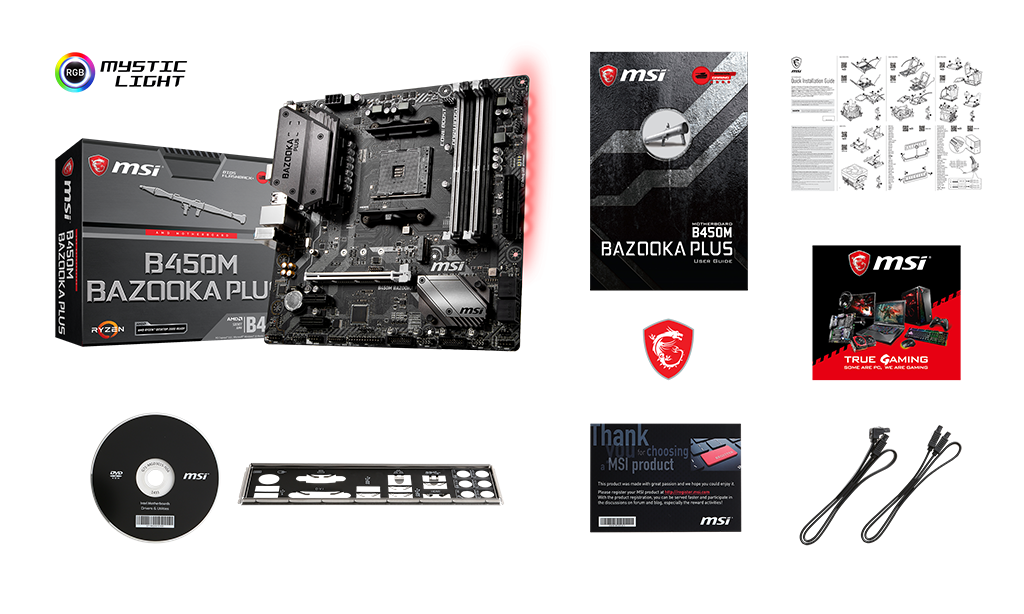

BOX CONTENT
