Core/MemoryBoost Clock / Base Clock
1518 MHz / 1265 MHz
2GB GDDR5 / 6008 MHz Memory
1518 MHz / 1265 MHz
2GB GDDR5 / 6008 MHz Memory

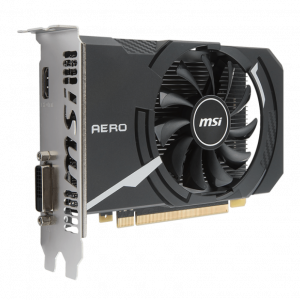

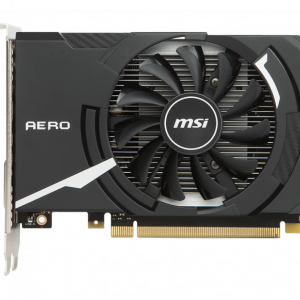

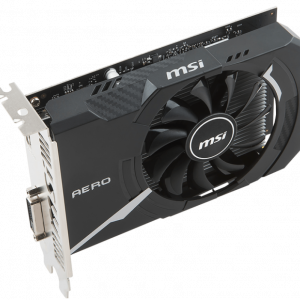

MODEL NAME | GeForce® GT 1030 AERO ITX 2G OC |
GRAPHICS PROCESSING UNIT | NVIDIA® GeForce® GT 1030 |
INTERFACE | PCI Express 3.0 x16 (uses x4) |
CORE NAME | GP 108-300 / GP 108-310 |
CORES | 384 Units |
CORE CLOCKS | 1518 MHz / 1265 MHz |
MEMORY SPEED | 6008 MHz |
MEMORY | 2GB GDDR5 |
MEMORY BUS | 64-bit |

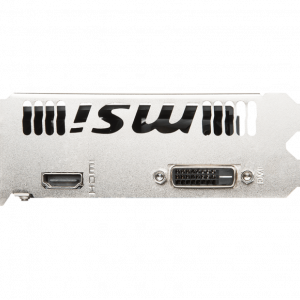

OUTPUT | HDMI 2.0b / SL-DVI-D |
HDCP SUPPORT | 2.2 |
POWER CONSUMPTION | 30 W |
RECOMMENDED PSU | 300 W |
CARD DIMENSION(MM) | 147 x 102 x 38 mm |
WEIGHT (CARD / PACKAGE) | 246 g / 472 g |
AFTERBURNER OC | Y |
DIRECTX VERSION SUPPORT | 12 |
OPENGL VERSION SUPPORT | 4.5 |
MAXIMUM DISPLAYS | 2 |
