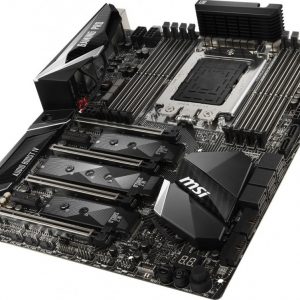

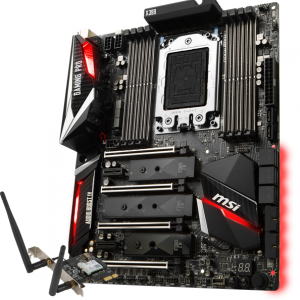

MSI X399 GAMING PRO CARBON AC

• Supports AMD® Ryzen ThreadRipper Processor for SocketTR4

Chipset

• AMD® X399 Chipset

• 8 x DDR4 memory slots, support up to 128GB*
• Quad channel memory architecture**
• Supports DDR4 3600+(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 3066(OC)/ 2933(OC)/ 2667/ 2400/ 2133 MHz*

* For the latest information about memory, please visit http://www.msi.com
** Please refer the DIMM Slots section for more details.

• 4 x PCIe 3.0 x16 slots
• 2 x PCIe 2.0 x1 slots

Multi-GPU

• Supports 4-Way AMD® CrossFire™ Technology
• Supports 4-Way NVIDIA® SLI™ Technology

Storage

• AMD® X399 Chipset
– 8 x SATA 6Gb/s ports*
• AMD® RYZEN THREADRIPPER Series Processors
– 3 x M.2 slots (Key M)*
– Supports up to PCIe 3.0 x4 and SATA 6Gb/s
– M2_1, M2_3 slots support 2242/ 2260 /2280 storage devices
– M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices
– Supports PCIe 3.0 x4 NVMe storage

RAID

• AMD® X399 Chipset
– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB

• ASMedia® ASM3142 Chipset
– 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
– 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
• AMD® X399 Chipset
– 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port through the internal USB connector
– 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
– 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
• AMD® CPU
– 8 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Wirsless LAN & Bluetooth®

• Intel® Dual Band Wireless-AC 8265 card
– Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.
– Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2

Audio

• Realtek® ALC1220 Codec
– 7.1-Channel High Definition Audio
– Supports S/PDIF output

LAN

• 1 x Intel® I211 Gigabit LAN controller

– 1 x 24-pin ATX main power connector
– 2 x 8-pin ATX 12V power connector
– 1 x 6-pin ATX 12V power connector*
– 8 x SATA 6Gb/s connectors
– 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
– 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
– 1 x USB 3.1 Gen2 Type-C port
– 1 x 4-pin CPU fan connector
– 1 x 4-pin Water Pump connector
– 4 x 4-pin system fan connectors
– 2 x Front panel connectors
– 1 x Front panel audio connector
– 2 x RGB LED connector
– 1 x TPM module connector
– 1 x LED demo connector
– 1 x Rest Button
– 1 x Power Button
– 1 x OC Button
– 1 x Chassis Intrusion connector
– 1 x clear CMOS header
* Provides additional power to PCIe x16 slots

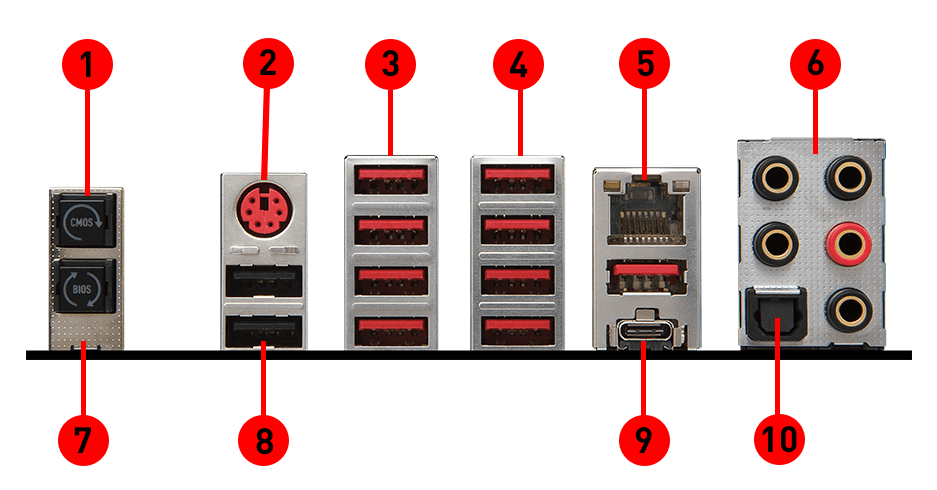

– 1 x Clear CMOS button
– 1 x BIOS FLASHBACK+ button
– 1 x PS/2 keyboard/ mouse combo port
– 2 x USB 2.0 Type-A ports
(1 x BIOS FLASHBACK+ port)
– 8 x USB 3.1 Gen1 Type-A ports
– 1 x LAN (RJ45) port
– 1 x USB 3.1 Gen2 Type-A port
– 1 x USB 3.1 Gen2 Type-C port
– 5 x OFC audio jacks
– 1 x Optical S/PDIF OUT connector

Dimension

• 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
• ATX Form Factor

Mounting

• 9 mounting holes

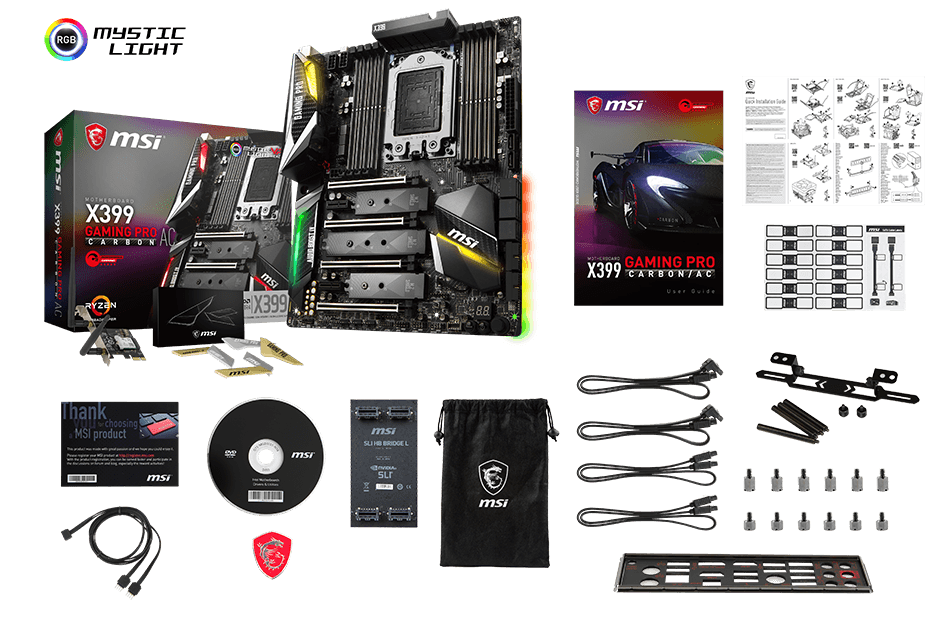

Unpacking

* MSI® does not guarantee the risks or damages caused by changing the cover.
** These pictures are for reference only and may vary without notice.
