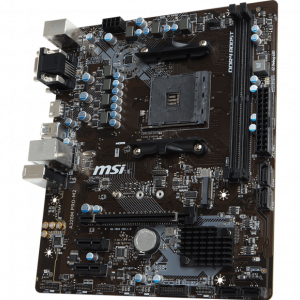

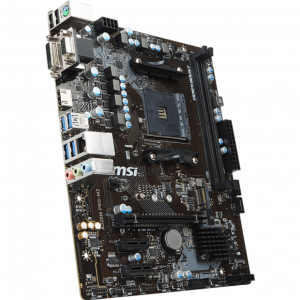

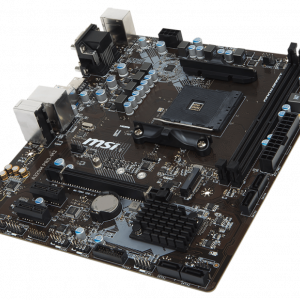

MSI A320M PRO-M2

PROCESSOR

Supports AMD^® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors for Socket AM4

See supported processors

CHIPSET

AMD^® A320 chipset

MEMORY

• 2 x DDR4 memory slots, support up to 32GB
  • Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/3200(OC)+ MHz¹
• Dual channel memory architecture
• Supports ECC UDIMM memory (non-ECC mode)
• Support non-ECC UDIMM memory

1. A-series / Athlon™ X4 processors support up to 2400 MHz only.

See supported memory

SLOTS

• 1 x PCIe 3.0 x16 slot (PCI_E1)
  • Supports x16 speed with AMD^® Ryzen™ 1^st and 2^nd Generation processors
  • Supports x8 speed with AMD^® Ryzen™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors
  • Supports x4 speed with AMD^® Athlon™ with Radeon™ Vega Graphics Processors
• 2 x PCIe 2.0 x1 slots

ONBOARD GRAPHICS

• 1 x VGA port, supports a maximum resolution of 2048×1280@60Hz, 1920×1200@60Hz¹
• 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz¹
• 1 x HDMI 1.4 port, supporting a maximum resolution of 4096×2160@24Hz¹

1. Only support when using AMD^® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series Processors
2. Processors maximum shared memory of 2048 MB

STORAGE

AMD^® A320 Chipset

• 4 x SATA 6Gb/s ports
  • Supports RAID 0, RAID1 and RAID 10
• 1 x M.2 port (Key M)
  • Supports PCIe 3.0 x4 (RYZEN Series Processors) or PCIe 3.0 x2(AMD^® Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors) and SATA 6Gb/s
  • Supports 2242/ 2260 /2280 storage devices

USB

AMD^® A320 Chipset

• 2 x USB 3.1 Gen1 (SuperSpeed USB) ports through the internal USB 3.1 Gen1 connector
• 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

AMD^® Processors

• 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO

Realtek^® ALC887 Codec

• 7.1-Channel High Definition Audio

LAN

• 1 x Realtek^® 8111H Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin system fan connector
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Serial port connector
• 1 x LED strip connector
• 1 x Clear CMOS jumper

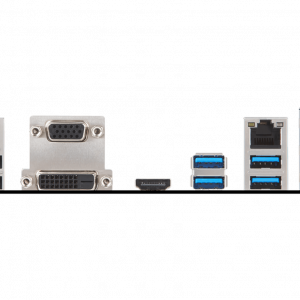

BACK PANEL PORTS

1. PS/2 Port
2. VGA Port
3. HDMI
4. USB 3.1 Gen1 Port
5. LAN Port
6. HD Audio Connectors
7. USB 2.0
8. DVI-D Port
9. USB 3.1 Gen1 Port

DIMENSIONS

• 9.6 in. x 8.1 in. (24.4 cm x 20.6 cm)
• M-ATX Form Factor

MOUNTING

4 mounting holes

OPERATING SYSTEM

• Support for Windows^® 10 64-bit
• Support for Windows^® 7 64-bit

* To support Windows^® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
