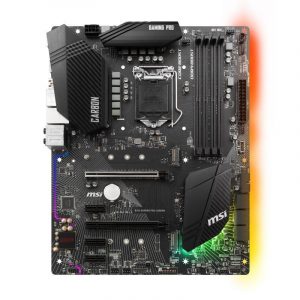

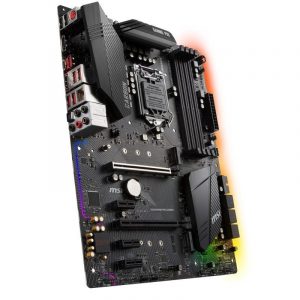

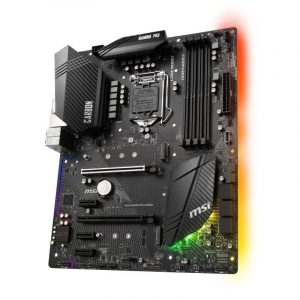

MSI B360 GAMING PRO CARBON → Số 1 cho Game thủ!

PROCESSOR

Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors for Socket LGA1151

CHIPSET

Intel® B360 Chipset

MEMORY

• 4 x DDR4 memory slots, support up to 64GB
  • Supports DDR4 2666/ 2400/ 2133 MHz1
• Dual channel memory architecture
• Supports non-ECC UDIMM memorye
• Supports Intel® Extreme Memory Profile (XMP)
• Please refer to www.msi.com for more information on compatible memory

SLOTS

• 2 x PCIe 3.0 x16 slots (support x16/x4 modes)1
• 3 x PCIe 3.0 x1 slots
• Please refer to www.msi.com for more information on compatible memory

ONBOARD GRAPHICS

• 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@30Hz
• 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz

MULTI-GPU

• Supports 2-Way AMD® CrossFire™ Technology

STORAGE

Intel® B360 Chipset

• 6 x SATA 6Gb/s ports*1
• 2 x M.2 slots (Key M)
  • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices2
  • M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
  • Intel® Optane™ Memory Ready for the M2_2 slot only
• SATA2 port will be unavailable when an M.2 SATA SSD module has been installed in the M2_1 slot.
• Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB

Intel® B360 Chipset

• 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports
  (1 Type-A port and 1 Type-C port on the back panel, 1 Type-C port available through the internal USB connector)
• 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connector
• 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

ASMedia® ASM1074

• 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO

Realtek® ALC1220 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1 x Intel® I219-V Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 1 x USB 3.1 Gen 2 Type-C connector
• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water pump fan connector
• 5 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 1 x 5050 RGB LED strip 12V connector (JRGB1)
• 1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1)
• 1 x CORSAIR connector (JCORSAIR1)
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper

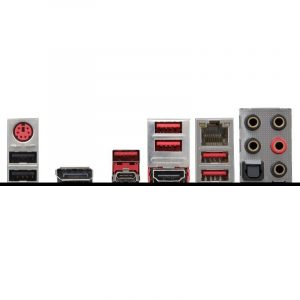

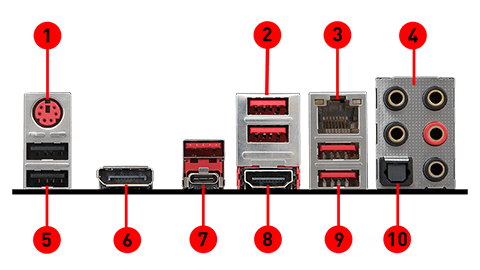

BACK PANEL PORTS

1. PS/2 Combo Port
2. USB 3.1 Gen1
3. LAN Port
4. HD Audio Connectors
5. USB 2.0 Port
6. DisplayPort
7. USB 3.1 Gen2 Type A + C
8. HDMI Port
9. USB 3.1 Gen1
10. Optical S/PDIF OUT

DIMENSIONS

• 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
• ATX Form Factor

MOUNTING

9 mounting holes
