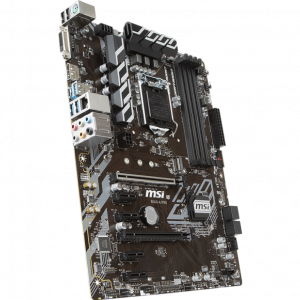

MSI B360-A PRO

PROCESSOR

Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors for Socket LGA1151

CHIPSET

Intel® B360 Chipset

MEMORY

• 4 x DDR4 memory slots, support up to 64GB
  • Supports DDR4 2666/ 2400/ 2133 MHz1
• Dual channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
• Please refer to Compatibility for more information on compatible memory

SLOTS

• 2 x PCIe 3.0 x16 slots (supports x16/ x4 mode)
• 4 x PCIe 3.0 x1 slots

ONBOARD GRAPHICS

• 1 x DisplayPort 1.2, supports a maximum resolution of 4096×2304 @ 60Hz
• 1 x DVI-D port, supports a maximum resolution of 1920×1200 @ 60Hz

MULTI-GPU

• Supports 2-Way AMD® CrossFire™ Technology

STORAGE

Intel® B360 Chipset

• 5 x SATA 6Gb/s ports1
• 1 x M.2 slot (Key M)
  • Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices2
  • Intel® Optane™ Memory Ready
• SATA1 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot.
• Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB

Intel® B360 Chipset

• 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel)
• 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 ports on the back panel, 2 ports available through the internal USB connector)
• 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AUDIO

Realtek® ALC892 Codec

• 7.1-Channel High Definition Audio

LAN

• 1 x Intel® I219-V Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 6-pin ATX PCIe power connector
• 5 x SATA 6Gb/s connectors
• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water pump fan connector
• 5 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 2 x Front panel connectors
• 1 x Series port connector
• 1 x Parallel port connector
• 1 x TPM module connector
• 1 x Thunderbolt Add-on Card Connector
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper

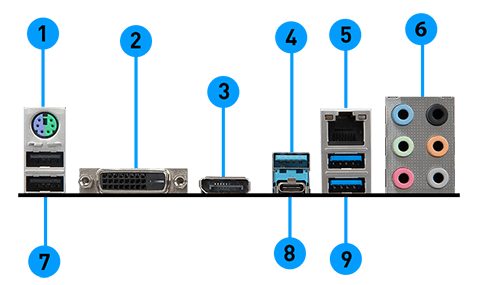

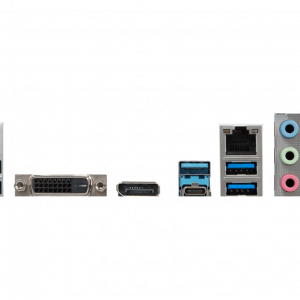

BACK PANEL PORTS

1. PS/2 Combo Port
2. DVI-D Port
3. DisplayPort
4. USB 3.1 Gen2 Type A
5. LAN Port
6. HD Audio Connectors
7. USB 2.0 Port
8. USB 3.1 Gen2 Type C
9. USB 3.1 Gen1

DIMENSIONS

• 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
• ATX Form Factor

MOUNTING

9 mounting holes
