PROCESSOR

Supports AMD® RYZEN™ Desktop processors and A-series/ Athlon™ Processors for Socket AM4

CHIPSET

AMD® X470 Chipset

MEMORY

• 4 x DDR4 memory slots, support up to 64GB
  • Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)1
  • Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)1
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• A-series/ Athlon™ processors support up to 2400 MHz. And the supporting frequency of memory varies with installed processor.

SLOTS

• 2 x PCIe 3.0 x16 slots (PCIE_1, PCIE_3)
  • Ryzen™ Desktop Processors support x16/x0, x8/x8 mode
  • Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors support x8/x0 mode
• 1 x PCIe 2.0 x16 slot (PCI_E5, supports x4 mode)1
• 2 x PCIe 2.0 x1 slots
• PCI_E5 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot.

MULTI-GPU

• Ryzen™ Desktop Processors
  • Supports 3-Way AMD® CrossFire™ Technology
  • Supports 2-Way NVIDIA® SLI™ Technology
• Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors
  • Supports 2-Way AMD® CrossFire™ Technology

STORAGE

AMD® X470 Chipset

• 8 x SATA 6Gb/s ports1
• 2 x M.2 ports (Key M)1
  • M2_1 slot (from AMD® processor) supports PCIe 3.0 x4 (RyzenTM Desktop processors) or PCIe 3.0 x2 (A-series/ Athlon™ processors) 2242/ 2260 /2280/ 22110 storage devices
  • M2_2 slot (from AMD® X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices2
• SATA3 port will be unavailable when installing SATA M.2 SSD in M2_2 slot.
• PCI_E5 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot.

RAID

AMD® X470 Chipset

• Supports RAID 0, RAID 1 and RAID 10 for NVMe storage devices

ONBOARD GRAPHICS

• 1 x DisplayPort, support a maximum resolution of 4096×2160 @60Hz1
• 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160@30Hzz2
• Only support when using Ryzen™ Desktop Processors with Radeon Vega Graphics & A-Series/ Athlon™ Processors
• Maximum shared memory of 2048 MB

USB

AMD® X470 Chipset

• 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
• 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
• 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connectors
• 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD® CPU

• 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO

Realtek® ALC1220 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1 x Intel® I211AT Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 8 x SATA 6Gb/s connectors
• 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin water-pump-fan connector
• 4 x 4-pin system fan connectors
• 1 x TPM module connector
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper
• 2 x 5050 RGB LED strip 12V connectors (JRGB1~2)
• 1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1)
• 1 x CORSAIR connector (JCORSAIR1)

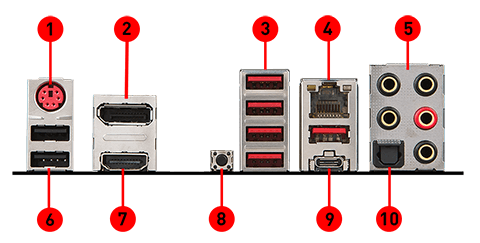

BACK PANEL PORTS

1. PS/2 Combo Port
2. DisplayPort
3. USB 3.1 Gen1
4. LAN Port
5. Golden Audio Connectors
6. USB 2.0
7. HDMI Port
8. Clear CMOS button
9. USB 3.1 Gen2
10. Optical S/PDIF OUT

DIMENSIONS

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

• Support for Windows® 10 64-bit
• Support for Windows® 7 64-bit

* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
