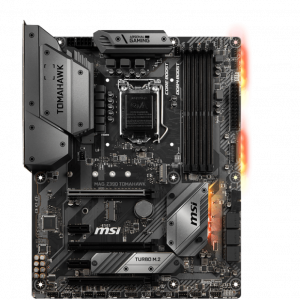

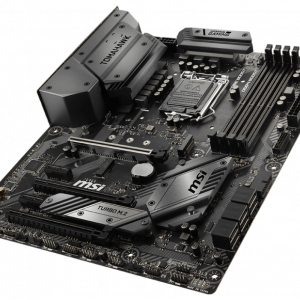

MSI MAG Z390 TOMAHAWK

PROCESSOR

Supports Intel® Core™ 9000 Series family/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

See supported processors

CHIPSET

Intel® Z390 Chipset

MEMORY

• 4 x DDR4 memory slots, support up to 64GB
• Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz*
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

See supported memory

SLOTS

• 3 x PCIe 3.0 x16 slots (support x16/x4/x1 modes)
• 2 x PCIe 3.0 x1 slots
• 1 x M.2 slot (Key E) for an Intel® CNVi wireless module only

ONBOARD GRAPHICS

• 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@24Hz
• 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz

MULTI-GPU

• Supports 2-Way AMD® CrossFire™ Technology

STORAGE

Intel® Z390 Chipset

• 6x SATA 6Gb/s ports*1
• 2x M.2 slots (Key M)*1
  • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
  • Intel® Optane™ Memory Ready
• M.2 slots and SATA ports share the bandwidth. Please refer to user manual for details.
• Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel® Z390 Chipset

• Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

USB

Intel® Z390 Chipset

• 4x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel)
• 4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
• 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AUDIO

Realtek® ALC892 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1 x Intel® I219-V Gigabit LAN controller
• 1 x Intel® I211-AT Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin Water Pump connector
• 5 x 4-pin system fan connectors
• 1 x Serial port connector
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 1 x TPM module connector
• 2 x 4-pin RGB LED connectors
• 1 x 3-pin RAINBOW LED connector

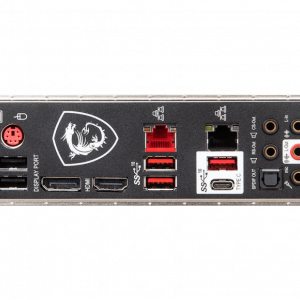

BACK PANEL PORTS

1. PS/2 Combo Port
2. LAN Port
3. HD Audio Connectors
4. USB 2.0 Port
5. DisplayPort
6. HDMI Port
7. USB 3.1 Gen2 Type A
8. USB 3.1 Gen2 Type A+C
9. Optical S/PDIF OUT

DIMENSIONS

• 9.6 in. x 12 in. (24.3 cm x 30.4 cm)
• ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

• Support for Windows® 10 64-bit

BOX CONTENT
