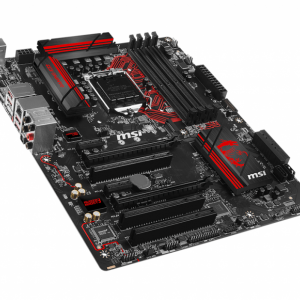

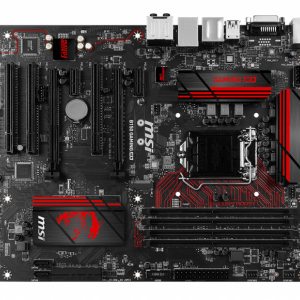

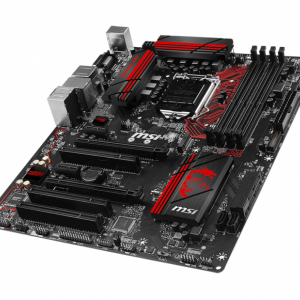

MSI B150 GAMING M3 → Số 1 cho Game thủ!

• Supports 6th Gen Intel® Core® i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
* Please refer to CPU Support for compatible CPU; the above description is for reference only.

• Intel® B150 Chipset

• 4 x DDR4 memory slots, support up to 64GB
– Supports DDR4 2133 MHz*
• Dual channel memory architecture
• Supports ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

• 2 x PCIe 3.0 x16 slots*
• 2 x PCIe 3.0 x1 slots
• 3 x PCI slots
* The PCI_E4 slot will only run PCIe 3.0 x1 speed when the PCI_E1 or PCI_E3 slot is installed a device.

Onboard Graphics

• 1 x HDMI™ port, supports a maximum resolution of 4096×2160@24Hz, 2560×1600@60Hz
• 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz

Multi-GPU

• Supports 2-Way AMD® CrossFire™ Technology

• Intel® B150 Chipset
• 6 x SATA 6Gb/s ports
• 1 x M.2 slot
– Supports SATA 6Gb/s standards, 4.2cm/ 6cm/ 8cm length M.2 SSD cards
• 1 x SATAe port

* SATAe port is backward compatible with SATA.

• Intel® B150 Chipset
– 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
– 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connectors) (Optional)

• Realtek® ALC1150 Codec
– 7.1-Channel High Definition Audio
– Supports S/PDIF output

• 1 x Killer™ E2400 Gigabit LAN controller

– 1 x 24-pin ATX main power connector
– 1 x 8-pin ATX 12V power connector
– 6 x SATA 6Gb/s connectors
– 1 x SATAe connector
– 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
– 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
– 2 x 4-pin CPU fan connectors
– 3 x 4-pin system fan connectors
– 1 x Front panel audio connector
– 2 x Front panel connectors
– 1 x TPM module connector
– 1 x Chassis Intrusion connector
– 1 x Clear CMOS jumper
– 1 x Serial port connector
– 1 x Parallel port connector
– 1 x Slow mode switch

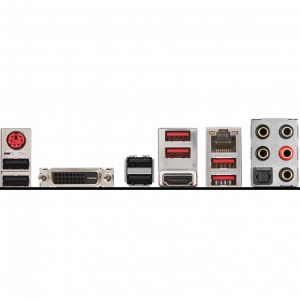

– 1 x PS/2 keyboard/ mouse port
– 4 x USB 2.0 ports
– 1 x DVI-D port
– 1 x HDMI™ port
– 4 x USB 3.1 Gen1 ports
– 1 x LAN (RJ45) port
– 1 x Optical S/PDIF OUT connector
– 5 x OFC audio jacks

BIOS

• The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.

Dimension

• 12 in. x 9.6 in. (30.4 cm x 24.4 cm)
• ATX Form Factor

Mounting

• 9 mounting holes
