| CPU • Supports 7th/6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151 |
| Chipset• Intel® B250 Chipset |
| Main Memory• 4 x DDR4 memory slots, support up to 64GB – 7th Gen processors support DDR4 2400/ 2133 MHz*/ ** – B250 chipset + 6th Gen processors support DDR4 2133 MHz*/ ** • Dual channel memory architecture • Supports Intel® Extreme Memory Profile (XMP)** * Please refer to www.msi.com for more information on compatible memory. **DDR4 memory modules can only run at maximum of 2400 MHz for 7th Gen processors and 2133 MHz for 6 th Gen processors on XMP mode. |
| Slots• 2 x PCIe 3.0 x16 slots (support x16/x4 mode) • 2 x PCIe 3.0 x1 slots |
• 1 x DVI-D port, supporting a maximum resolution of 1920×1200@60Hz |
• Supports 2-Way AMD® CrossFire™ Technology |
| Storage • Intel® B250 Chipset * The SATA1 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot. |
| USB• Intel® B250 Chipset – 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A ports + 1 Type-C port on the back panel, 2 ports available through the internal USB connector) - 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) |
| Audio• Realtek® ALC892 Codec – 7.1-Channel High Definition Audio |
| LAN • 1 x Intel® I219-V Gigabit LAN controller |
| Internal I/O Connectors– 1 x 24-pin ATX main power connector – 1 x 8-pin ATX 12V power connector – 6 x SATA 6Gb/s connectors – 1 x M.2 slot – 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) – 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) – 1 x 4-pin CPU fan connector – 3 x 4-pin system fan connectors – 1 x Front panel audio connector – 2 x Front panel connectors – 1 x Serial port connector – 1 x RGB LED connector – 1 x TPM module connector – 1 x TBT connector – 1 x Chassis Intrusion connector – 1 x Clear CMOS jumper |

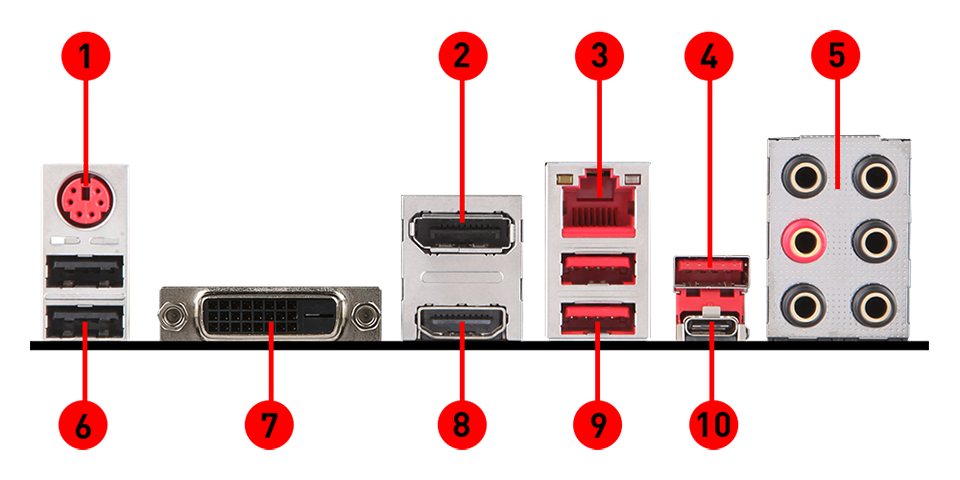

| Back Panel I/O Ports– 1 x PS/2 mouse & keyboard combo port – 2 x USB 2.0 ports – 1 x DVI-D port – 1 x DisplayPort – 1 x HDMI™ port – 1 x LAN (RJ45) port – 3 x USB 3.1 Gen1 Type-A ports – 1 x USB 3.1 Gen1 Type-C port – 6 x OFC audio jacks |
imension • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
Mounting • 8 mounting holes |
- PS/2 GAMING Device Port
- DisplayPort
- Intel® Gigabit LAN Port
- USB 3.1 Gen1 Ports
- HD Audio Connectors
- USB 2.0 Ports
- DVI-D Port
- HDMI
- VR Ready USB 3.1 Gen1 Ports
- USB 3.1 Gen1 Type-C Ports
