CPU Support Supports 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors
CPU Socket LGA 1151
Chipset Intel® H310 Chipset
Graphics Interface 1 x PCI-E 3.0 x16 slot
Display Interface DVI-D, VGA – Requires Processor Graphics
Memory Support 2 DIMMs, Dual Channel DDR4 up to 2666MHz
Expansion Slots 2 x PCI-E x1 slots
Storage 4 x SATA 6Gb/s
USB ports 4 x USB 3.1(Gen1) + 6 x USB 2.0
LAN Realtek® 8111H Gigabit LAN
Audio 8-Channel(7.1) HD Audio with Audio Boost
CPU Socket LGA 1151
Chipset Intel® H310 Chipset
Graphics Interface 1 x PCI-E 3.0 x16 slot
Display Interface DVI-D, VGA – Requires Processor Graphics
Memory Support 2 DIMMs, Dual Channel DDR4 up to 2666MHz
Expansion Slots 2 x PCI-E x1 slots
Storage 4 x SATA 6Gb/s
USB ports 4 x USB 3.1(Gen1) + 6 x USB 2.0
LAN Realtek® 8111H Gigabit LAN
Audio 8-Channel(7.1) HD Audio with Audio Boost

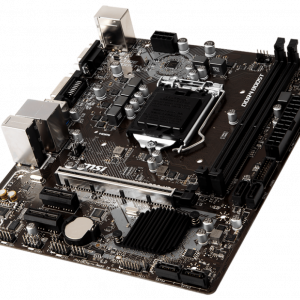

Supports 8th Generation Intel® Core™ Processors, Pentium® Gold and Celeron® Processors for Socket LGA1151
CHIPSET
Intel® H310 Chipset
MEMORY
- 2 x DDR4 memory slots, support up to 32GB
- Supports DDR4 2666/ 2400/ 2133 MHz
- Dual channel memory architecture
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
SLOTS
- 1 x PCIe 3.0 x16 slot
- 2 x PCIe 2.0 x1 slots
ONBOARD GRAPHICS
- 1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz
- 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
STORAGE
Intel® H310 Chipset
- 4 x SATA 6Gb/s ports
USB
Intel® H310 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
AUDIO
Realtek® ALC887 Codec
- 7.1-Channel High Definition Audio
LAN
- 1 x RTL8111H Gigabit LAN controller
INTERNAL CONNECTORS
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 2 x Front panel connectors
- 1 x Front panel audio connector
- 1 x Serial port connector
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper
- 4 x EZ Debug LED

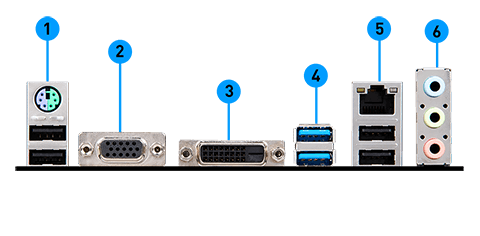

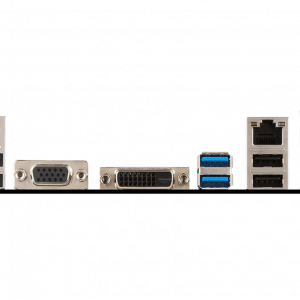

BACK PANEL PORTS
- PS/2 Combo Port
- VGA Port
- DVI-D Port
- USB 3.1 Gen1
- LAN Port
- HD Audio Connectors
- USB 2.0 Port
- USB 2.0 Port
DIMENSIONS
- 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
- m-ATX Form Factor
MOUNTING
6 mounting holes
