MSI MEG Z390 GODLIKE → Số 1 cho Game thủ!

PROCESSOR

Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

See supported processors

CHIPSET

Intel® Z390 Chipset

MEMORY

• 4 x DDR4 memory slots, support up to 64GB
  • Supports DDR4 4600(OC)/ 4533(OC)/ 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2800(OC)/ 2666/ 2400/ 2133 MHz1
• Dual channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
• Please refer to Compatibility for more information on compatible memory

See supported memory

SLOTS

• 4 x PCIe 3.0 x16 slots1
• 1 x PCIe 3.0 x1 slot
• Please refer to page 31 for details

MULTI-GPU

• Supports 2-Way NVIDIA® SLI™ Technology
• Supports 4-Way AMD CrossFire™ Technology

STORAGE

Intel® Z390 Chipset

• 6 x SATA 6Gb/s ports1
• 3 x M.2 slots (Key M)1
  • M2_1 & M2_3 support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
  • Intel® Optane™ Memory Ready
• 1 x U.2 port2
  • Supports PCIe 3.0 x4 NVMe storage
• M.2_2 slot, U.2 port and SATA ports share the bandwidth.
• Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel® Z390 Chipset

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID5 for M.2 PCIe storage devices

USB

Intel® Z390 Chipset

• 6 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 3 Type-A ports on the back panel, 2 Type-C internal connectors)
• 4 x USB 2.0 (High-speed USB) ports through the internal USB connectors

ASMedia® ASM1042 Chipset

• 2 x USB 3.1 Gen1 (SuperSpeed USB) ports on the back panel

ASMedia® ASM1074 Chipset

• 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors

AUDIO

2 x Realtek® ALC1220 Codecs

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

ESS® E9018 Codec

• Supports 6.3mm Gold-plated stereo headphone out

LAN

• 2 x KillerTM E2500 Gigabit LAN controller

WIRELESS

Killer™ 1550 Chipset

• The Wireless module is pre-install in the M2_4 (Key-E) slot
• Supports Wi-Fi 2×2 802.11 AC
• Supports Bluetooth® 4.1, 3.0+HS

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x 6-pin ATX PCIe power connector
• 6 x SATA 6Gb/s connectors
• 3 x M.2 slots (M-Key)
• 1 x U.2 port
• 2 x USB 3.1 Gen2 Type-C ports
• 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin Water Pump connector
• 8 x 4-pin system fan connectors
• 1 x 3-pin Water Flow connector
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 2 x 2-pin Thermal Sensors connectors
• 1 x 4-pin RGB LED connector
• 2 x 3-pin RAINBOW LED connectors
• 1 x 3-pin CORSAIR LED connector

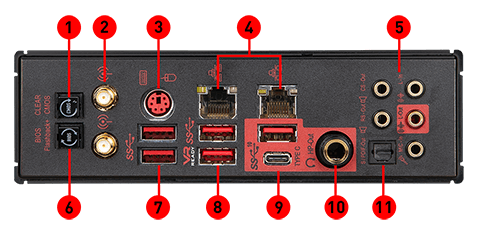

BACK PANEL PORTS

1. Clear CMOS Button
2. Wi-Fi /Bluetooth Antenna Connectors
3. PS/2 GAMING Device Port
4. Double Killer™ E2500 Gigabit LAN
5. HD Audio Connectors
6. BIOS FLASHBACK+ Button
7. USB 3.1 Gen1 Ports
8. USB 3.1 Gen2 Ports
9. USB 3.1 Gen2 Ports Type-A+C
10. 6.3mm headphone
11. Optical S/PDIF-Out

DIMENSIONS

• 12 in. x 10.7 in. (30.5 cm x 27.2 cm)
• E-ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

Support for Windows® 10 64-bit

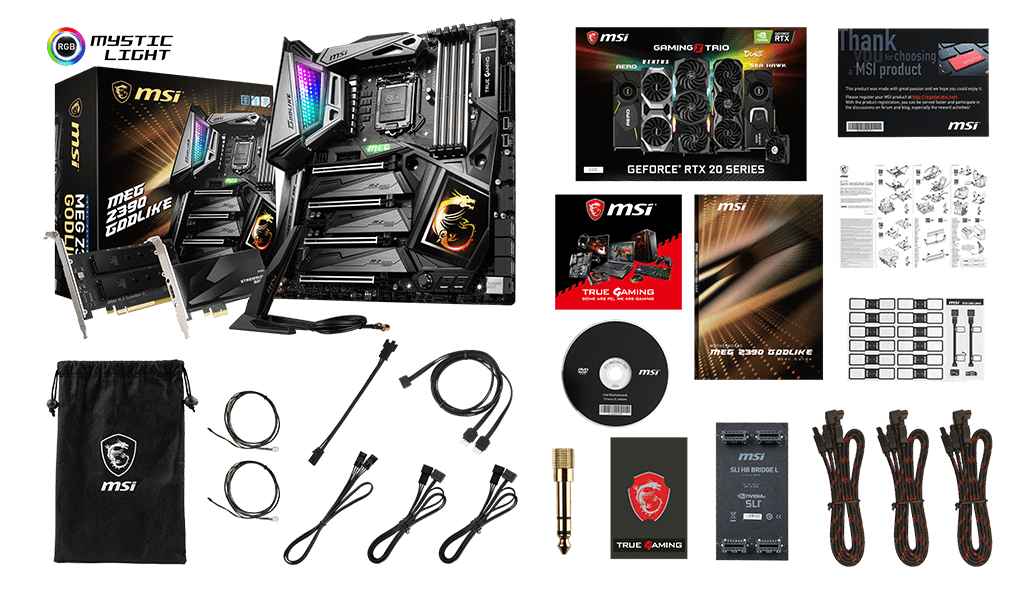

BOX CONTENT
