PROCESSOR
Supports 8th Gen Intel® Core™ processors, and Intel® Pentium® Gold and Celeron® processors for Socket LGA1151
CHIPSET
Intel® B360 Chipset
MEMORY
- 2 x DDR4 memory slots, support up to 32GB
- Supports DDR4 2666/ 2400/ 2133 MHz
- Dual channel memory architecture
- Supports non-ECC, un-buffered memory
- Supports Intel® Extreme Memory Profile (XMP)
SLOTS
- 1 x PCIe 3.0 x16 slot
- 2 x PCIe 3.0 x1 slots
ONBOARD GRAPHICS
- 1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz
- 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
STORAGE
Intel® B360 Chipset
- 6 x SATA 6Gb/s ports
- 1 x M.2 slot (Key M)
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- Intel® Optane™ Memory Ready1
- Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB
Intel® B360 Chipset
- 6x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connector)
- 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
AUDIO
Realtek® ALC887 Codec
- 7.1-Channel High Definition Audio
LAN
- 1 x RTL8111H Gigabit LAN controller
INTERNAL CONNECTORS
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x USB 3.1 Gen1 connector1 (supports additional 2 USB 3.1 Gen1 ports)
- 6 x SATA 6Gb/s connectors
- 1 x Clear CMOS jumper
- 2 x Front panel connectors
- 1 x Serial port connector
- 1 x Chassis Intrusion connector
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x Front panel audio connector
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector

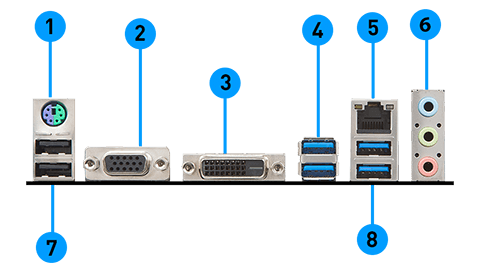

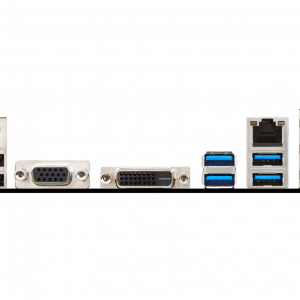

BACK PANEL PORTS
- PS/2 Combo Port
- VGA Port
- DVI-D Port
- USB 3.1 Gen1
- LAN Port
- HD Audio Connectors
- USB 2.0 Port
- USB 3.1 Gen1
DIMENSIONS
- 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
- m-ATX Form Factor
MOUNTING
6 mounting holes
