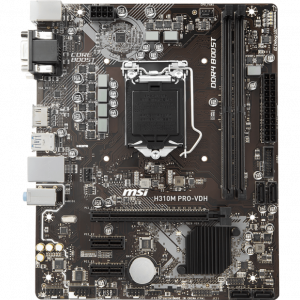

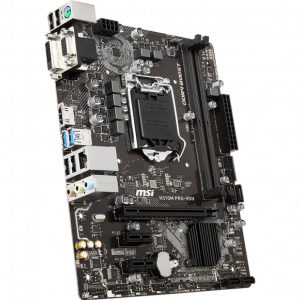

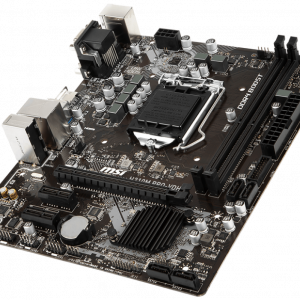

MSI H310M Pro-VDH

PROCESSOR

Supports 8th Generation Intel® Core™ Processors, Pentium® Gold and Celeron® Processors for Socket LGA1151

CHIPSET

Intel® H310 Chipset

MEMORY

• 2 x DDR4 memory slots, support up to 32GB
• Supports DDR4 2666/ 2400/ 2133 MHz (by JEDEC)1
• Supports DDR4 2666/ 2400/ 2133 (by XMP OC)1
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
• 2666 MHz for I7 and I5 processors only.

SLOTS

• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 2.0 x1 slots

ONBOARD GRAPHICS

• 1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz
• 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
• 1 x HDMI™ port, supports a maximum resolution of 4096×2160@30H
• Supports up to 2 displays simultaneously.

STORAGE

Intel® H310 Chipset

• 4 x SATA 6Gb/s ports
  • Supports Intel® Rapid Storage Technology

USB

Intel® H310 Chipset

• 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
• 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)

AUDIO

Realtek® ALC887 Codec

• 7.1-Channel High Definition Audio

LAN

• 1 x RTL8111H Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1 x Clear CMOS jumper
• 2 x Front panel connectors
• 1 x Serial port connector
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Front panel audio connector
• 1 x 4-pin CPU fan connector
• 1 x 4-pin system fan connector

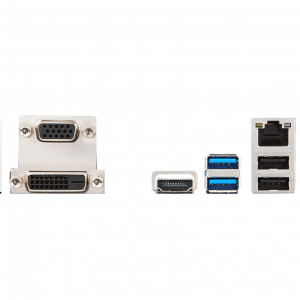

BACK PANEL PORTS

DIMENSIONS

• 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
• m-ATX Form Factor

MOUNTING

6 mounting holes
