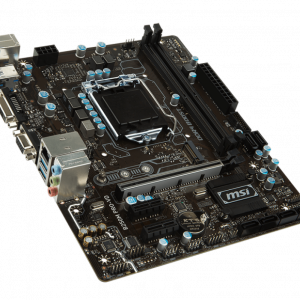

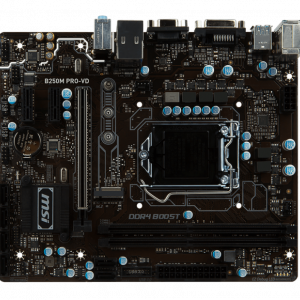

MSI B250M PRO-VD

• Supports 6th/7th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
* This function will be supported depend on the CPU.

• Intel® B250 Chipset

• 2 x DDR4 memory slots, support up to 32GB
– 7th Gen processors support DDR4 2400/ 2133 MHz*
– 6th Gen processors support DDR4 2133 MHz*
• Dual channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
* Please refer to www.msi.com for more information on compatible memory.
** DDR4 memory modules can only run at maximum of 2400 MHz for 7th Gen processors and 2133 MHz for 6 th Gen processors on XMP mode.

• 1 x PCIe 3.0 x16 slots
• 2 x PCIe 3.0 x1 slots

• 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
• 1 x VGA port, supports a maximum resolution of 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz

• Intel® B250 Chipset
• 6 x SATA 6Gb/s ports
• 1 x M.2 slots (Key M)*
– Support up to PCIe 3.0 x4 and SATA 6Gb/
– Supports 2242/ 2260/ 2280 storage devices
– Intel® Optane™ Memory Ready
– Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host card**

* The SATA2 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot.
** The Turbo U.2 Host Card is not included, please purchase separately.

• Intel® B250 Chipset
– 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
ƒ- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

• Realtek® ALC887 Codec
– 7.1-Channel High Definition Audio

• 1 x Realtek® RTL8111H Gigabit LAN controller

– 1 x 24-pin ATX main power connector
– 1 x 8-pin ATX 12V power connector
– 6 x SATA 6Gb/s connectors
– 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
– 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
– 1 x 4-pin CPU fan connector
– 1 x 4-pin system fan connector
– 1 x Front panel audio connector
– 2 x Front panel connectors
– 1 x Chassis Intrusion connector
– 1 x Serial Port connector
– 1 x Clear CMOS jumper

– 1 x PS/2 keyborard/ mouse combo port
– 2 x USB 2.0 ports
– 1 x DVI-D port
– 1 x VGA port
– 1 x LAN (RJ45) port
– 4 x USB 3.1 Gen1 ports
– 3 x audio jacks

• 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
• Micro-ATX Form Factor

• 6 mounting holes
