PROCESSOR
Supports AMD® RYZEN™ 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics Processors for Socket AM4
CHIPSET
AMD® B450 Chipset
MEMORY
- 4 x DDR4 memory slots, support up to 64GB1
- Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
- Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE)
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Please refer www.msi.com for more information on compatible memory.
SLOTS
- 1 x PCIe 3.0 x16 slot (PCI_E1)
- Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors
- Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors
- 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1,2
- 3 x PCIe 2.0 x1 slots2
- PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slots will be unavailable when installing M.2 PCIe SSD in M2_2 slot.
- PCI_E4 will run x1 speed when installing devices in any PCIe 2.0×1 slot.
MULTI-GPU
- Ryzen™ Desktop Processors
- Supports 2-Way AMD® CrossFire™ Technology
STORAGE
AMD® B450 Chipset
- 4 x SATA 6Gb/s ports1
- 1 x M.2 slot (M2_2, Key M)1
- Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices
AMD® CPU
- 1 x M.2 slot (M2_1, Key M)1
- Supports PCIe 3.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
- 2 x SATA 6Gb/s ports1
- PCI_E2, PCI_E3, PCI_E4 and PCI_E5 slots will be unavailable when installing M.2 PCIe SSD in M2_2 slot.
- SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M2_1 slot.
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe RAID
ONBOARD GRAPHICS
- 1 x DisplayPort, supports a maximum resolution of 4096×2304 @60Hz, 2560×1600 @60Hz, 3840×2160 @60Hz, 1920×1200 @60Hz*1
- 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @30Hz, 2560×1600 @60Hz2
- Only support when using AMD® Ryzen™ with Radeon Vega Graphics Processors
- Maximum shared memory of 2048 MB
USB
AMD® B450 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
- 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connector
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD® CPU
- 2 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel
AUDIO
Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
WIFI & BLUETOOTH
Intel® Dual Band Wireless-AC 9260
- Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 1.73 Gbps speed.
- Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE,4.2
- 1 x M2_3 slot with E key (Wi-Fi mode)
LAN
- 1 x Intel® I211AT Gigabit LAN controller
INTERNAL CONNECTORS
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connectors (support additional 2 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin water-pump-fan connector
- 4 x 4-pin system fan connectors
- 1 x TPM module connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x Serial Port connector
- 1 x Clear CMOS jumper
- 1 x 2pin LED Power connector
- 2 x 5050 RGB LED strip 12V connectors (JRGB1~2)
- 1 x WS2812B Individually Addressable RGB LED strip 5V connector (JRAINBOW1)
- 1 x CORSAIR connector (JCORSAIR1)

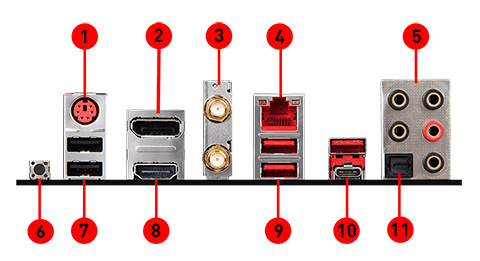

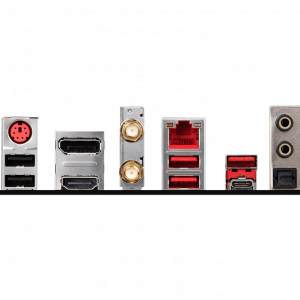

BACK PANEL PORTS
- PS/2 Combo Port
- DisplayPort
- Wi-Fi / Bluetooth
- LAN Port
- HD Audio Connectors
- BIOS Flashback Button
- USB 2.0 Port
- HDMI Port
- USB 3.1 Gen1
- USB 3.1 Gen2 Type-A + C
- Optical S/PDIF OUT
DIMENSIONS
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- ATX Form Factor
MOUNTING
9 mounting holes
OPERATING SYSTEM
- Support for Windows® 10 64-bit
- Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

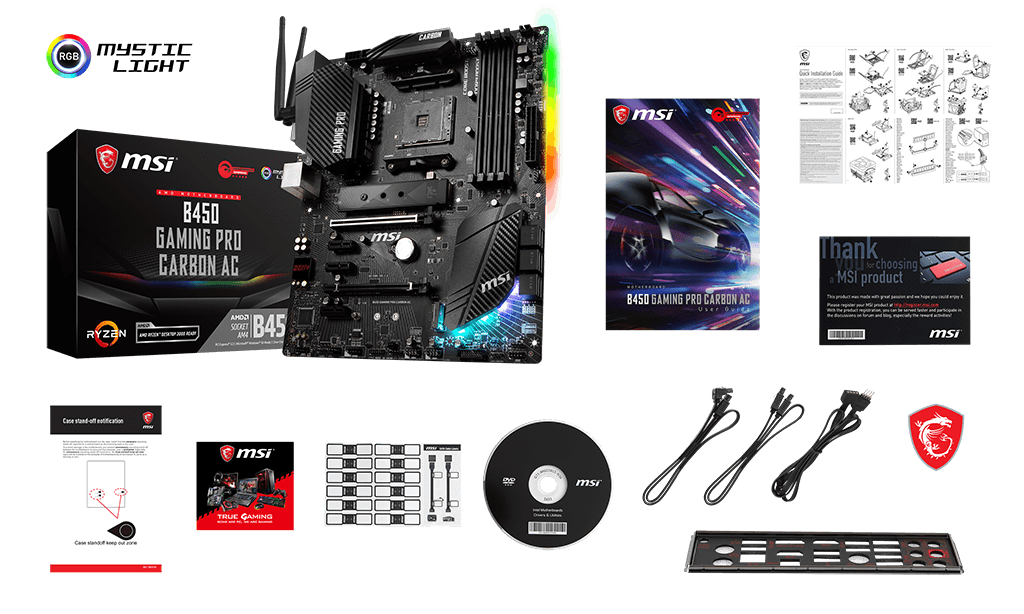

BOX CONTENT
