MSI B450M PRO-M2

PROCESSOR

Support AMD® Ryzen™ 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics Processors for Socket AM4

CHIPSET

AMD® B450 chipset

MEMORY

• 2 x DDR4 memory slots, support up to 32GB
  • Supports DDR4 1866/ 2133/ 2400/ 2667 MHz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz by A-XMP OC mode
• Dual channel memory architecture
• Supports ECC UDIMM memory (non-ECC mode)
• Support non-ECC UDIMM memory

SLOTS

• 1 x PCIe 3.0 x16 slot
  • Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors
  • Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors
• 2 x PCIe 2.0 x1 slots

ONBOARD GRAPHICS

• 1 x VGA port, supports a maximum resolution of 2048×1280@60Hz, 1920×1200@60Hz1
• 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1
• 1 x HDMI 1.4 port, supporting a maximum resolution of 4096×2160@24Hz1
• Only support when using AMD® Ryzen™ with Radeon Vega Graphics Processors
• Maximum shared memory of 2048 MB

STORAGE

AMD® B450 Chipset

• 4 x SATA 6Gb/s ports
  • Supports RAID 0, RAID1 and RAID 10
• 1 x M.2 slot (Key M)
  • Supports PCIe 3.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices

USB

AMD® B450 Chipset

• 2 x USB 3.1 Gen1 (SuperSpeed USB) ports through the internal USB 3.1 Gen1 connector
• 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

AMD® Processors

• 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO

Realtek® ALC887 Codec

• 7.1-Channel High Definition Audio

LAN

• 1 x Realtek® 8111H Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x Front panel connectors
• 1x TPM module connector
• 1x Chassis Intrusion connector
• 1x Serial port connector
• 1x LED strip connector
• 1x Clear CMOS jumper

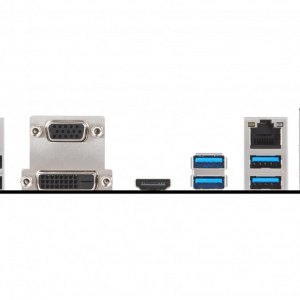

BACK PANEL PORTS

1. PS/2 Port
2. VGA Port
3. USB 3.1 Gen1 Port
4. LAN Port
5. HD Audio Connectors
6. USB 2.0
7. DVI-D Port
8. HDMI
9. USB 3.1 Gen1 Port

DIMENSIONS

• 9.6 in. x 8.1 in. (24.4 cm x 20.6 cm)
• M-ATX Form Factor

MOUNTING

4 mounting holes

OPERATING SYSTEM

• Support for Windows® 10 64-bit
• Support for Windows® 7 64-bit

* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

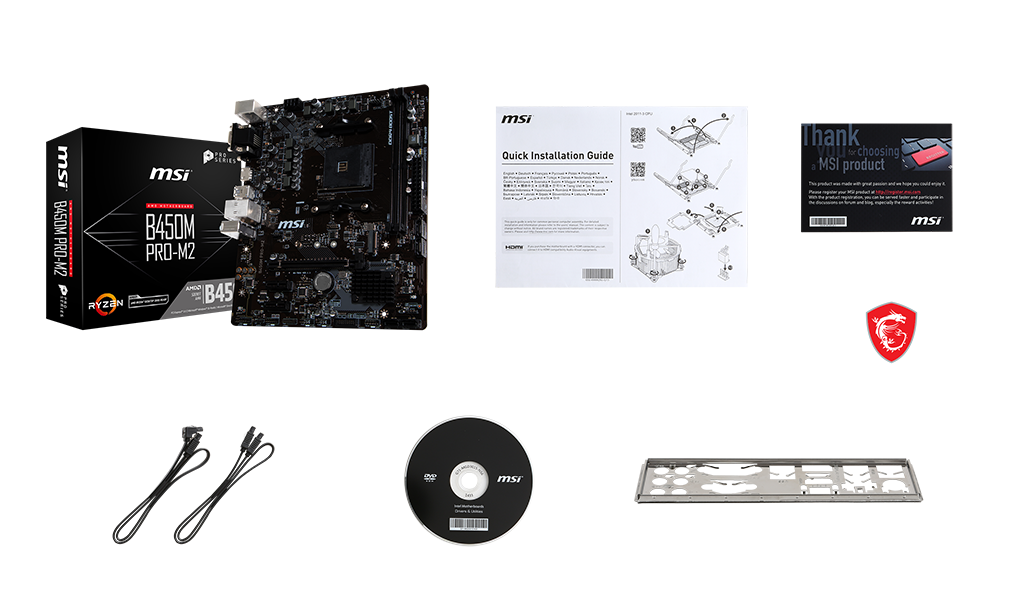

BOX CONTENT
