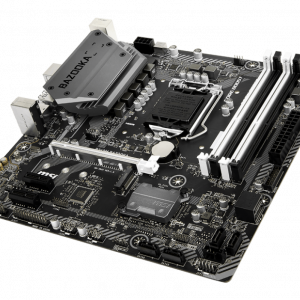

MSI B360M BAZOOKA → Số 1 cho Game thủ!

PROCESSOR

Supports 8th Generation Intel® Core™ Processors, and Intel® Pentium® Gold and Celeron® Processors for Socket LGA1151

CHIPSET

Intel® B360 Chipset

MEMORY

• 4 x DDR4 memory slots, support up to 64GB
  • Supports DDR4 2666/ 2400/ 2133 MHz1
• Dual channel memory architecture
• Supports non-ECC UDIMM memorye
• Supports Intel® Extreme Memory Profile (XMP)
• Please refer to www.msi.com for more information on compatible memory

SLOTS

• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 3.0 x1 slots

ONBOARD GRAPHICS

• 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
• 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@30Hz

STORAGE

Intel® B360 Chipset

• 6 x SATA 6Gb/s ports1
• 1 x M.2 slots (Key M)
  • Support up to PCIe 3.0 x4 and SATA 6Gb/s
  • Supports 2242/ 2260 /2280/ 22110 storage devices
  • Intel® Optane™ Memory Ready2
• The SATA1 connector will be unavailable when a SATA M.2 SSD has been installed in the M.2_1 slot.
• Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB

Intel® B360 Chipset

• 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C ports on the back panel, 2 ports available through the internal USB connector)
• 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AUDIO

Dual Realtek® ALC887 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1 x Realtek 8111H Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
• 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1 x 4-pin CPU fan connector
• 2 x 4-pin system fan connectors
• 1 x Front panel audio connector
• 1 x Parallel port connector
• 1 x Serial port connector
• 2 x Front panel connectors
• 1 x TPM module connector
• 1 x Chassis Intrusion connector
• 1 x Thunderbolt add-on card connector
• 1 x RGB LED connector
• 1 x Clear CMOS jumper

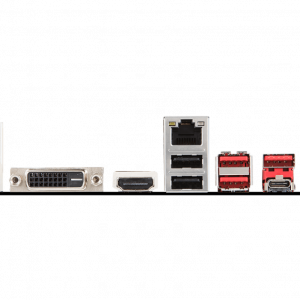

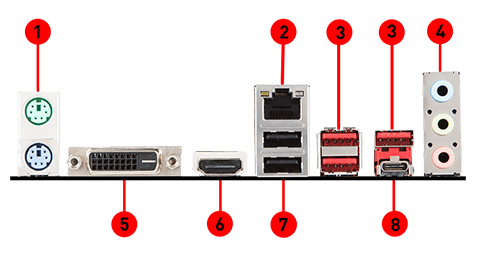

BACK PANEL PORTS

1. Mouse and Keyboard Port
2. LAN Port
3. USB 3.1 Gen1 Type A
4. HD Audio Connectors
5. DVI-D Port
6. HDMI Port
7. USB 2.0 Port
8. USB 3.1 Gen1 Type C

DIMENSIONS

• 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
• m-ATX Form Factor

MOUNTING

8 mounting holes
