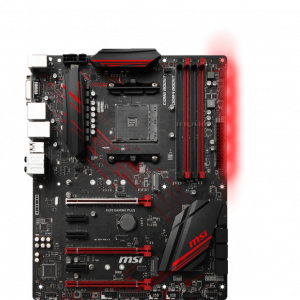

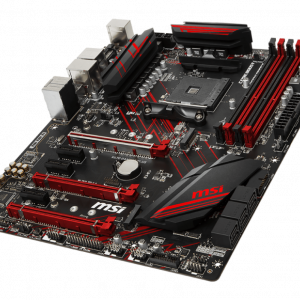

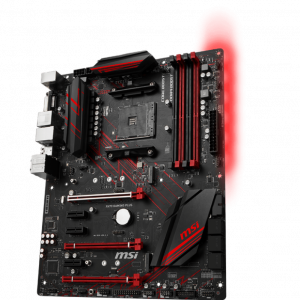

MSI X470 GAMING PLUS → Số 1 cho Game thủ!

PROCESSOR

Supports AMD® Ryzen™ Desktop Processors and AMD® A-Series/Athlon™ Processors for Socket AM4

CHIPSET

AMD® X470 Chipset

MEMORY

• 4 x DDR4 memory slots, support up to 64GB
  • Supports DDR4 1866/ 2133/ 2400/ 2667 Mhz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 Mhz by A-XMP OC MODE1
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory
• A-series/ Athlon™ processors support up to 2400 MHz. And the supporting frequency of memory varies with installed processor.

SLOTS

• 2 x PCIe 3.0 x16 slots (PCIE_1, PCIE_4)
  • Ryzen™ Desktop Processors support x16/x0, x8/x8 mode
  • Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors support x8/x0 mode
• 1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)1
• 3 x PCIe 2.0 x1 slots
• PCI_E6 slot will be unavailable when installing M.2 PCIe SSD in M2_2 slot.

MULTI-GPU

• Ryzen™ Desktop Processors
  • Supports 3-Way AMD® CrossFire™ Technology
• Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors
  • Supports 2-Way AMD® CrossFire™ Technology

STORAGE

AMD® X470 Chipset

• 6 x SATA 6Gb/s ports
• 2 x M.2 ports (Key M)1
  • M2_1 slot (from AMD® processor) supports PCIe 3.0 x4 (Ryzen™ Desktop Processors ) or PCIe 3.0 x2 (A-series/ Athlon™ Processors) 2242/ 2260 /2280/ 22110 storage devices
  • M2_2 slot (from AMD® X470 Chipset) supports PCIe 2.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
• SATA1 port will be unavailable when installing SATA M.2 SSD in M2_2 slot.
• PCI_E6 slot will be unavailable when installing PCIe M.2 SSD in M2_2 slot.

RAID

AMD® X470 Chipset

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

ONBOARD GRAPHICS

• 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1
• 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@30Hz1
• Only support when using Ryzen™ Desktop Processors with Radeon Vega Graphics and A-Series/Athlon™ Processors
• Maximum shared memory of 2048 MB

USB

ASMedia® ASM1143 Chipset

• 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel

AMD® X470 Chipset

• 4 x USB 3.1 Gen1 (SuperSpeed USB) ports through the internal USB connectors
• 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AMD® CPU

• 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO

Realtek® ALC892 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1 x Realtek® 8111H Gigabit LAN controller

INTERNAL CONNECTORS

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 6 x SATA 6Gb/s connectors
• 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
• 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
• 1 x 4-pin CPU fan connector
• 1 x 4-pin PUMP fan connector (supports up to 2A)
• 4 x 4-pin system fan connectors
• 1 x Serial port connector
• 1 x Parallel port connector
• 2 x 5050 RGB LED strip 12V connectors
• 1 x TPM module connector
• 1 x Front panel audio connector
• 2 x System panel connectors
• 1 x Chassis Intrusion connector
• 1 x Clear CMOS jumper
• 1 x Clear CMOS button

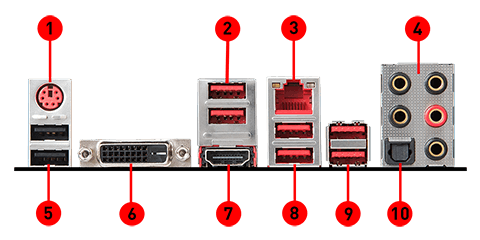

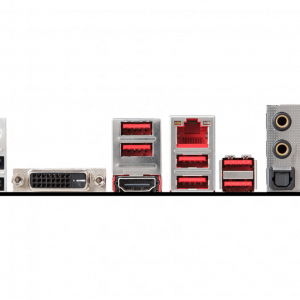

BACK PANEL PORTS

1. PS/2 Combo Port
2. USB 3.1 Gen1
3. LAN Port
4. HD Audio Connectors
5. USB 2.0 Port
6. DVI-D Port
7. HDMI Port
8. USB 3.1 Gen1
9. USB 3.1 Gen2
10. Optical S/PDIF OUT

DIMENSIONS

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

• Support for Windows® 10 64-bit
• Support for Windows® 7 64-bit

* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
